NyoGel® 760G - The Leading Connector Grease

The number of electrical connectors and electronic circuits in devices such as cars, planes, appliances, industrial machinery, trucks or boats is continuously growing. Failure of these components, from short circuit to continuity loss, present a major concern as issues can vary from nuisance to increased warranty costs to critical safety problems. The constant exposure to moisture, corrosive environments, and vibration can also accelerate the failure or malfunction of connector components.

Advantages of NyoGel® 760G

Fretting Wear

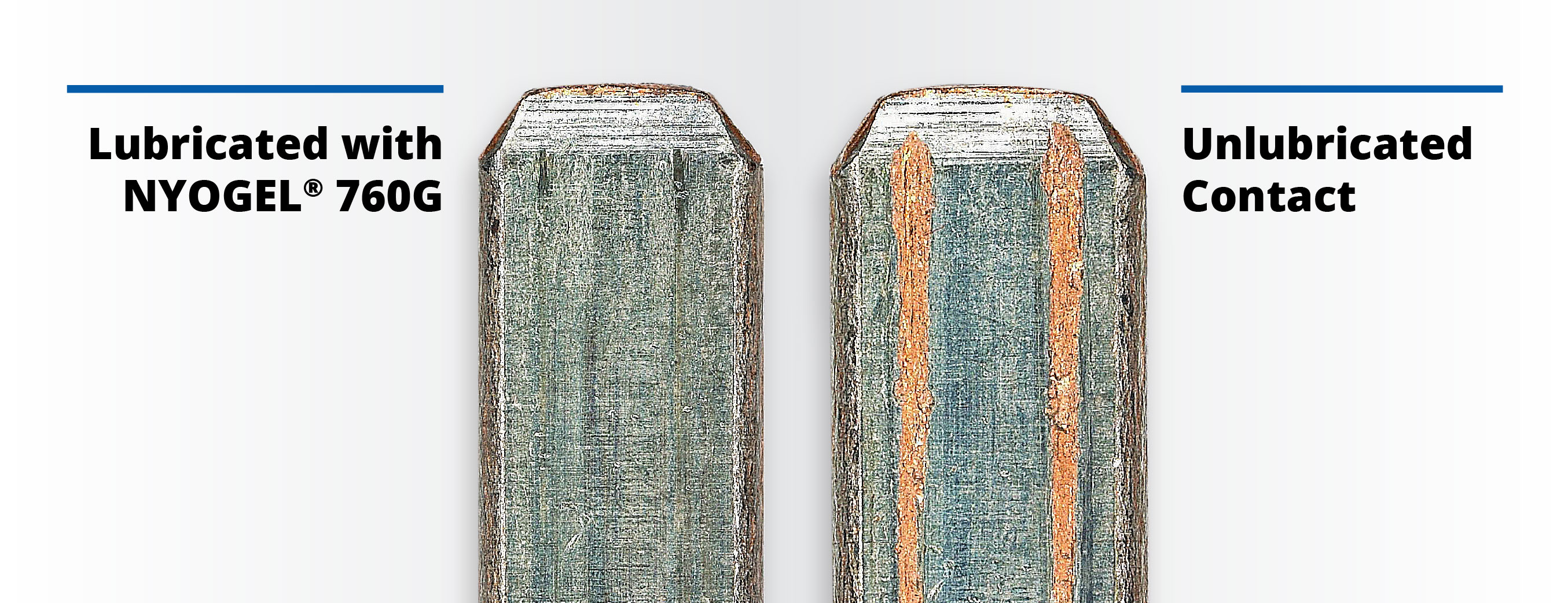

The Nye test monitors fretting cycles (micromotion) of terminals until resistance increases 100 milliohms over the static baseline, to predict the lifetime of terminals. Below, you can see the difference in fretting wear between an unlubricated contact and a contact lubricated with NyoGel® 760G. The contact on the left was run for 6.7 MM cycles and the contact on the right was run for only 0.5 MM cycles.

Test Conditions: 2.8mm APEX Copper-Tin Terminals, 10Hz, 100 microns, 50% Failure Values

Copper Corrosion

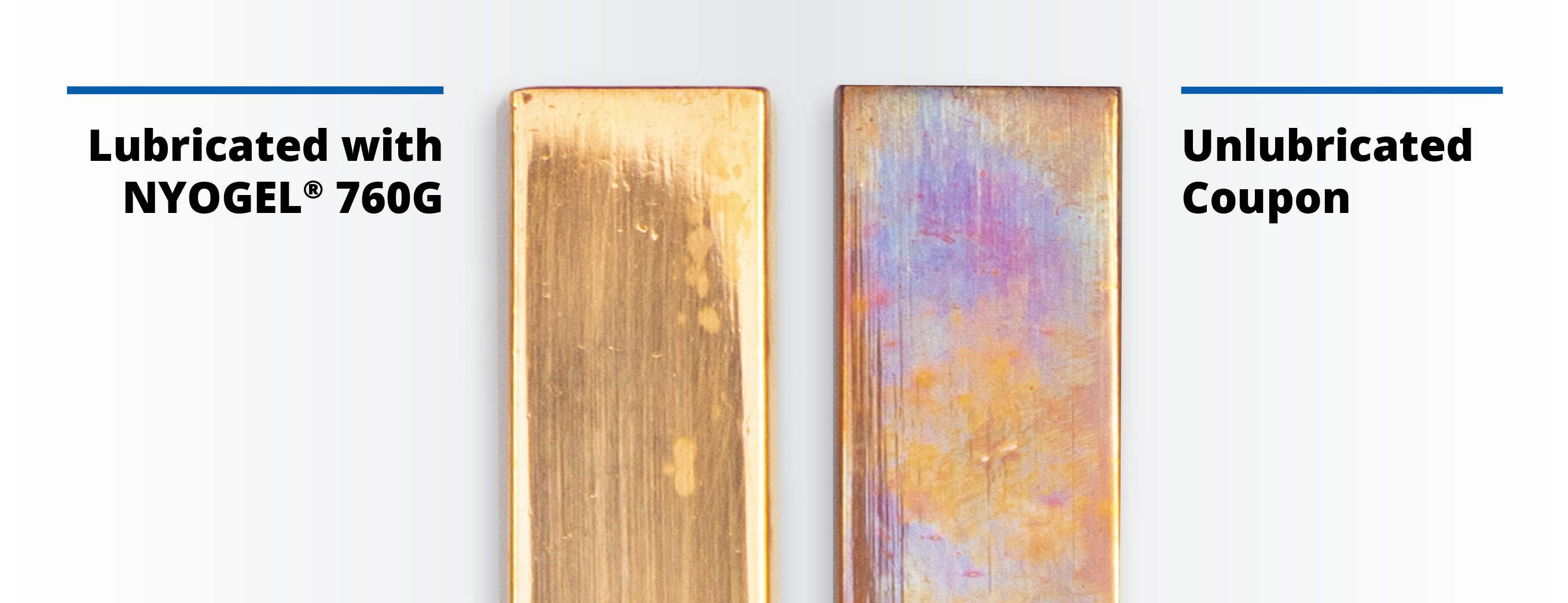

The ASTM D4048 is an accelerated test to indicate how a lubricant protects copper surfaces over time, using a 12 segment scale from ‘Slightly Tarnished’ (1a) to ‘Very Tarnished’ (4c). The coupon on the left, lubricated with NyoGel® 760G, recieved a rating of 1a where as an unlubricated coupon, pictured on the right, recieved a rating of 3b.

Typical Properties
